2. Introduction
2.1. What is the Ekrano GX?
The Ekrano GX (EGX) is the latest addition to the GX product family, Victron’s advanced communication centre for energy systems. It features a built-in 7-inch touchscreen display and extensive connectivity options, allowing full system monitoring and control. The Ekrano GX is the direct successor to the Color Control GX (CCGX).
GX devices can be placed at the core of any Victron energy installation. They run the Venus OS operating system and ensure seamless communication between all connected components, including inverter/chargers, solar chargers, DC-DC chargers and batteries.
You can monitor and control your system:
Remotely, via the Victron Remote Management (VRM) portal using an internet connection (see Accessing via VRM)
Locally, via:
A web browser (see Accessing the Remote Console via local LAN/WiFi Network)
An Android tablet or phone as a dedicated display (see Android GX WiFi Display)
A Multi-Functional Display (MFD) (see Marine MFD integration by App)
The VictronConnect app over LAN, WiFi, or Bluetooth (where applicable)
The built-in WiFi Access Point
The Remote Console provides a central user interface for system monitoring and configuration, accessible both locally and remotely.
The EGX also supports VRM: Remote firmware updates and allows remote configuration changes.
Note: This manual refers to the latest firmware version. You can check the current version via the Device menu under Settings → Firmware (see the Firmware updates chapter). If your GX device is not connected to the internet, the latest firmware can be downloaded from Victron Professional.
2.2. What's in the box?

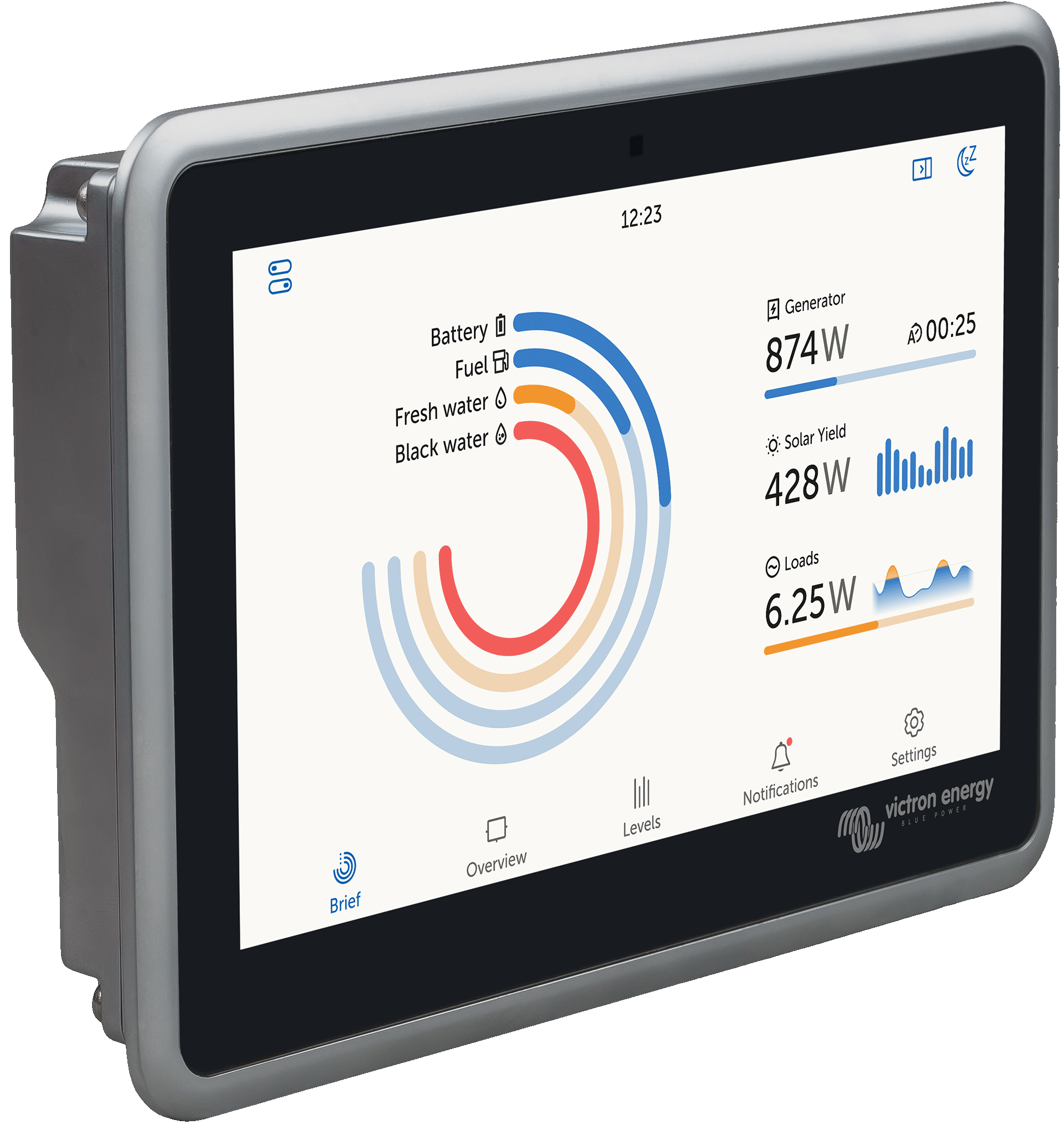

Ekrano GX |  |
Power cable with 3.15A inline fuse and M8 terminal eyes for battery or DC busbar-attachment |  |
VE.Can terminators (2 pcs) |  |

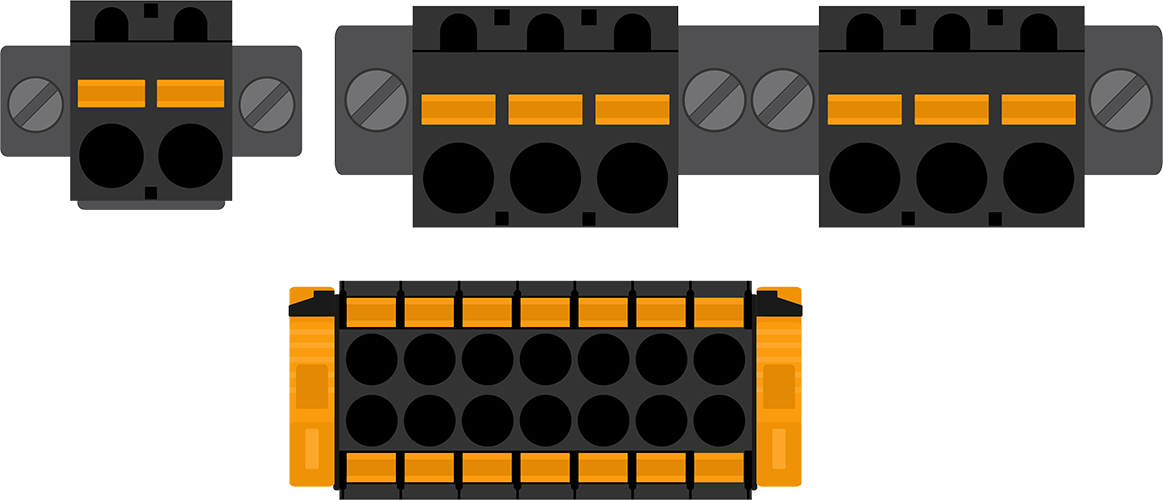

Terminal blocks with mounting screws for: Relays (2 pcs), Power Connector IO terminal block with quick release clamps |  |
Mounting material: | |

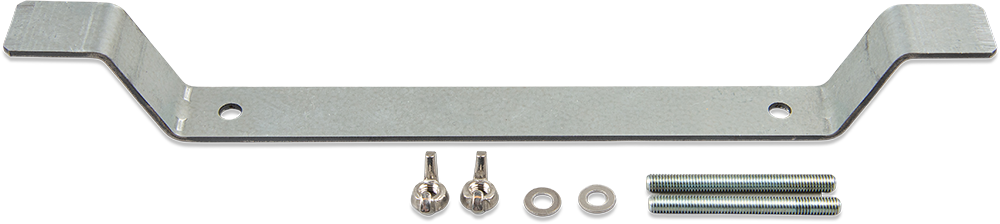

Steel bracket for panel mount incl. rods, wingnuts and washers |  |

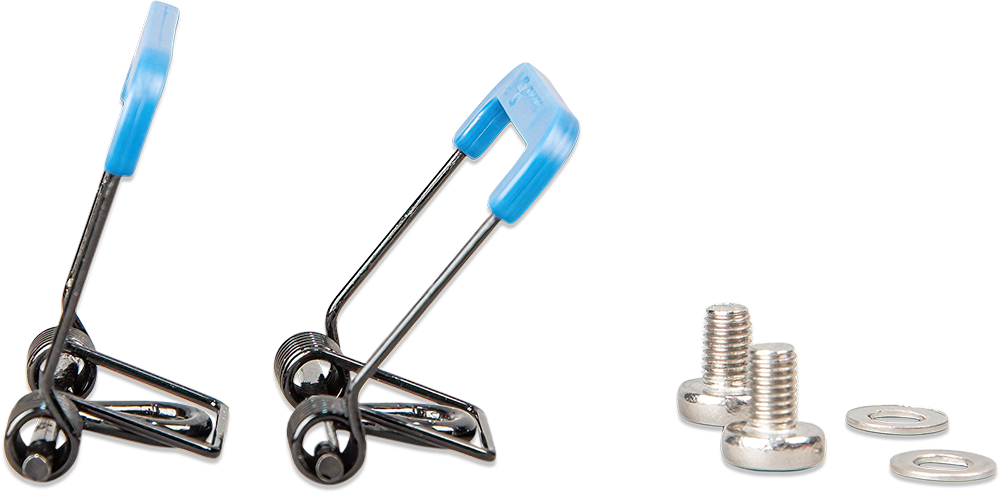

Springs for panel blind hole mount incl. screws and washers |  |
